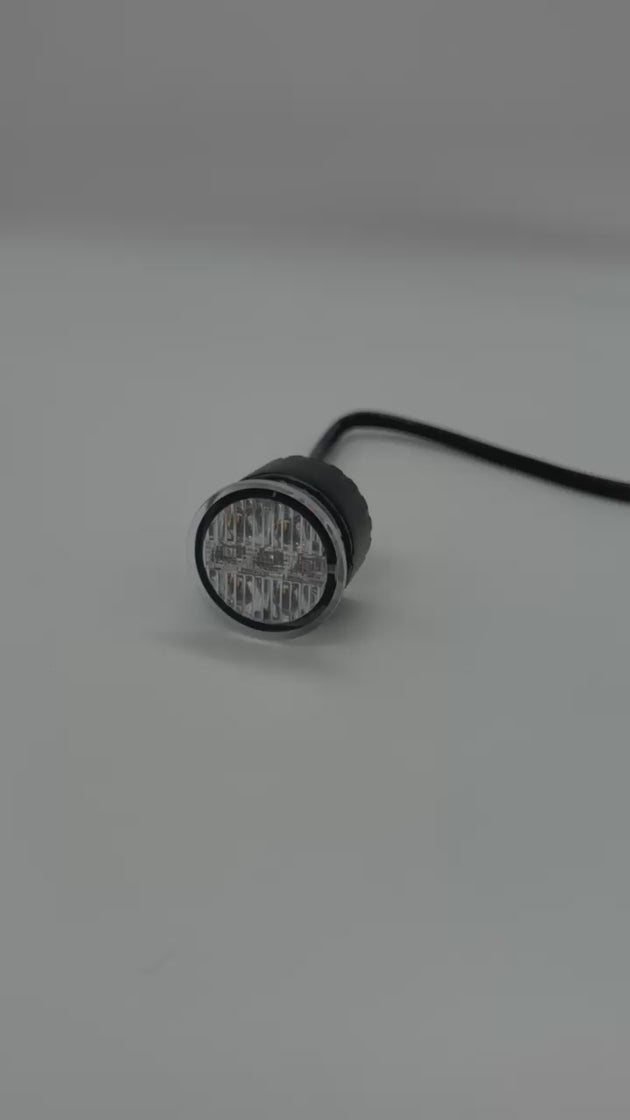

SENTRY NanoPoint Hideaway Dual Function SAE ECE LED Amber Strobe & Marker Light
AUSTRALIAN FIRST
Product Information
Designed for seamless integration, this 2-in-1 Amber Strobe and Marker Light delivers high-performance visibility in a compact, low-profile design. ECE R10 R65, SAE Class 1 & 2, and ECE R148 certified, it meets the highest safety standards.
Featuring diffused LED optics, IP69K-rated durability, and 100,000-hour lifespan, it withstands extreme conditions. With 20 flash patterns, sync & alternation options, and multiple mounting methods, it’s built for versatility.
Compact, powerful, and engineered for reliability—your ultimate hideaway lighting solution.
| Specification | Details |
|---|---|
| Strobe Colour | AMBER |
| Marker Colour | AMBER |
| Product Certifications | RoHS, CE, E9, UKCA |
| Strobe Certifications | ECE R10 R65, XA1 XB1 TA1, SAE Class 1 Class 2 |
| Marker Certification | ECE R148 (Certified Under ADR Specification Requirements) |
| SAE Standard | SAE J595 Class 1 - Highest Safety Protocols |
| Temperature Range | -30°C to +50°C - Engineered for Extreme Conditions |
| Protection Rating | Highest Rating with IP69K Protection Standards - Harshest Environmental Resistance to Dust and High Temperature & Pressure Water Jets |
| Design | Industry Leading 2 in 1 Ultra Small Design - Low Profile & Dual Purpose |
| Mounting | Permanent Mount - Gasket Grommet or (included Flat Rubber Grommet) |
| Warning Output | Diffused LED Optics Technology - Precisioning Intensity with Modern Engineering & Design |
| Lens | Durable Polycarbonate Textured Lens - Superior Daytime Visibility with UV Protection (colorless when not illuminated) |
| Warning LED Power | 4 x 3W LEDs - 100,000 Hours Ultra Long Life > (total power: 12W) |
| Marker LED Power | 3 x 0.5W LEDs - 100,000 Hours Ultra Long Life > (total power: 1.5W) [PER COLOR] |
| Voltage | DC 10V~30V with Reverse Polarity Protection - Universal Commercial or Personal Applications |
| Advanced Features | Synchronization & Alternation between units with Memory Recall - Highly Customizable |
| Flash Patterns | 20 Flash Patterns, 4 Cables at 20cm - with Integrated Marker |
| Dimensions |
Without Gasket Base diameter – 32mm Lens diameter – 35mm Overall depth – 25mm With Flat Gasket Grommet: 42mm Diameter X 25mm depth Hole Size Required for Flush Mounting: 32mm Refer To Product Page Below for Additional Information on Mounting; alternatively, contact us. |
| Protection Note | IP6K9K: Offers the highest protection against ingress of dust (6) and withstands close-range high pressure, high temperature spray downs (K9K). Ideal for harsh environmental conditions, especially suitable for equipment used in high-pressure steam cleaning applications. |
| Wiring | (RED: Power for Strobe, Black: Ground, Yellow: Patterns Selector & Sync & Reset, White: Alternation) Refer To Leaflet for Comprehensive Wiring Information. |
| Mounting Accessories | Flat Grommet OR Gasket Grommet |
| Connection Capacity | Connect Up To 20 units, synchronize or alternate. |
| Instructions | Comprehensive information & instructions, including wiring diagrams, are supplied on a leaflet with the item. |
| Warranty | 3-Year Warranty - We stand by the quality of our product. |
AUSTRALIAN FIRST
DUAL FUNCTION: Strobe + Marker Light
SYNCHRONIZATION & ALTERNATION with MEMORY RECALL
Flash Patterns
1
Single (R65)
2
Double (R65)
3
Single (SAE)
4
Double (SAE)
5
Triple (SAE)
6
Quad (SAE)
7
Quint (SAE)
8
Mega (SAE)
9
Single Flash [Combo]
10
Double Flash [Combo]
11
Single - Double [Fast]
12
Double - Single [Slow]
13
Single - Quad
14
Single - Mega
15
Double - Triple
16
Single - Triple - Quint
17
Breathing
18
Random
19
Steady
20
Mega Steady
Marker Functions
Marker Function 1
STEADY: AMBER
ULTRA LOW PROFILE WITH INTENSE OUTPUT
ADR COMPLIANT. CERTIFIED TO LAST FOR COMMERICAL AND PERSONAL USE.
Innovative ENGINEERING, PERFORMANCE IN STYLE.
SETTING A new standard in versatile, high-performance WARNING lighting
NANOPOINT DUAL FUNCTION HIDEAWAY
