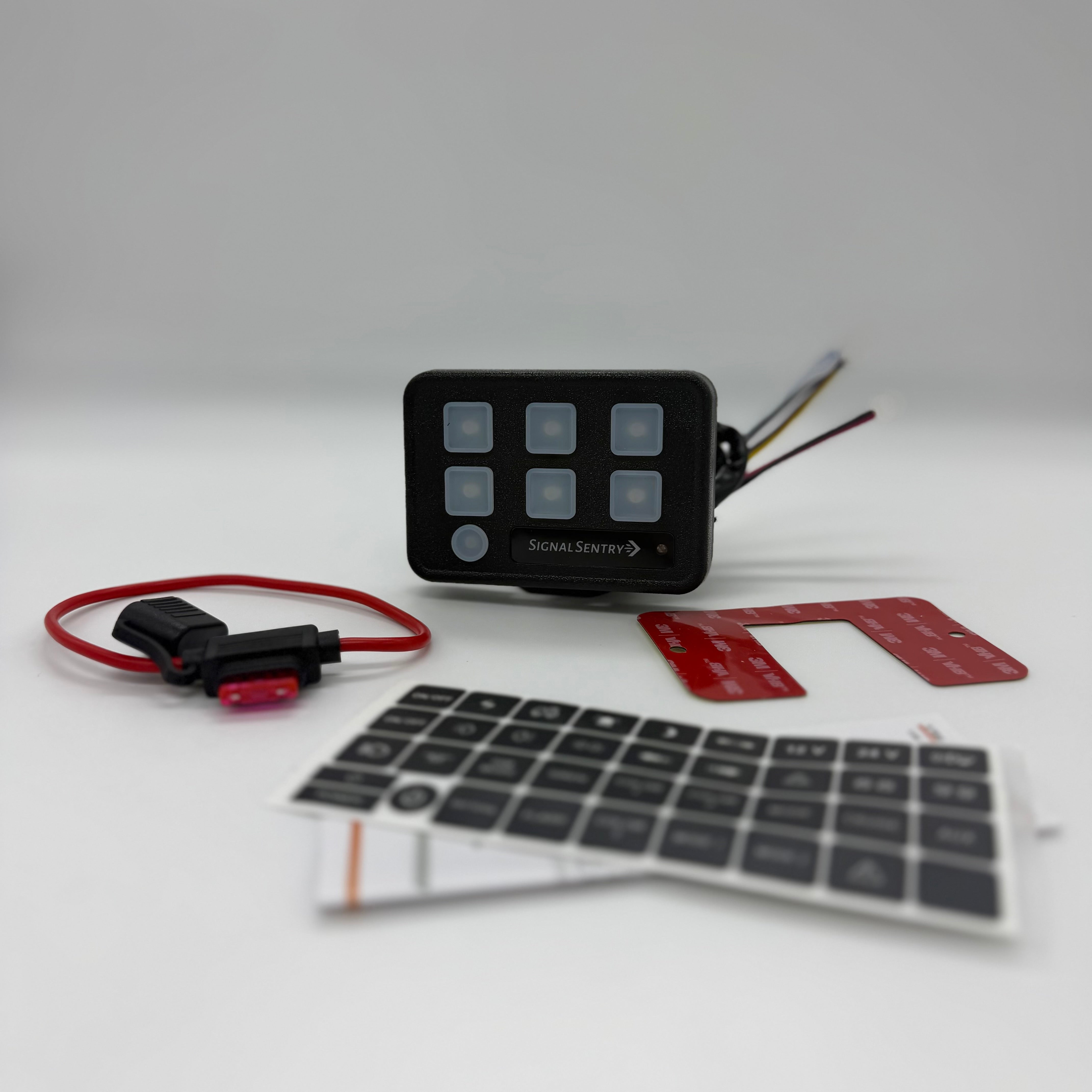

10-30V DC SPEAR6 Smart 6 Way "All-In-One" Programmable Switch
RRP: $130
Couldn't load pickup availability
Shipping & Returns
Shipping Policy
- Fast Delivery: Orders placed before 11am shipped same day; after 11am, next business day.
- Weekend Orders: Received but not shipped on weekends.
- Tracking Provided: AusPost Express with tracking number for all orders.
- Free Shipping: Enjoy free shipping Australia-wide.
Returns Policy
- 3-Year Warranty: Peace of mind with a comprehensive 3-year warranty on all products.
- Easy Returns: Contact us via our Contact Page for any returns, alternatively reach out to us at admin@signalsentry.com.au. Products must be unused, undamaged, and include original packaging with bubble wrap.
- Customer Satisfaction: Our commitment to ensuring you're happy with your purchase.
Compatibility Features
- Universal Voltage: Compatible with 12-24V vehicle systems.
- Mounting: Includes Foam Backing and Screws for Permanent Mounting.
- Broad Vehicle Suitability: Ideal for construction, emergency, and utility vehicles.

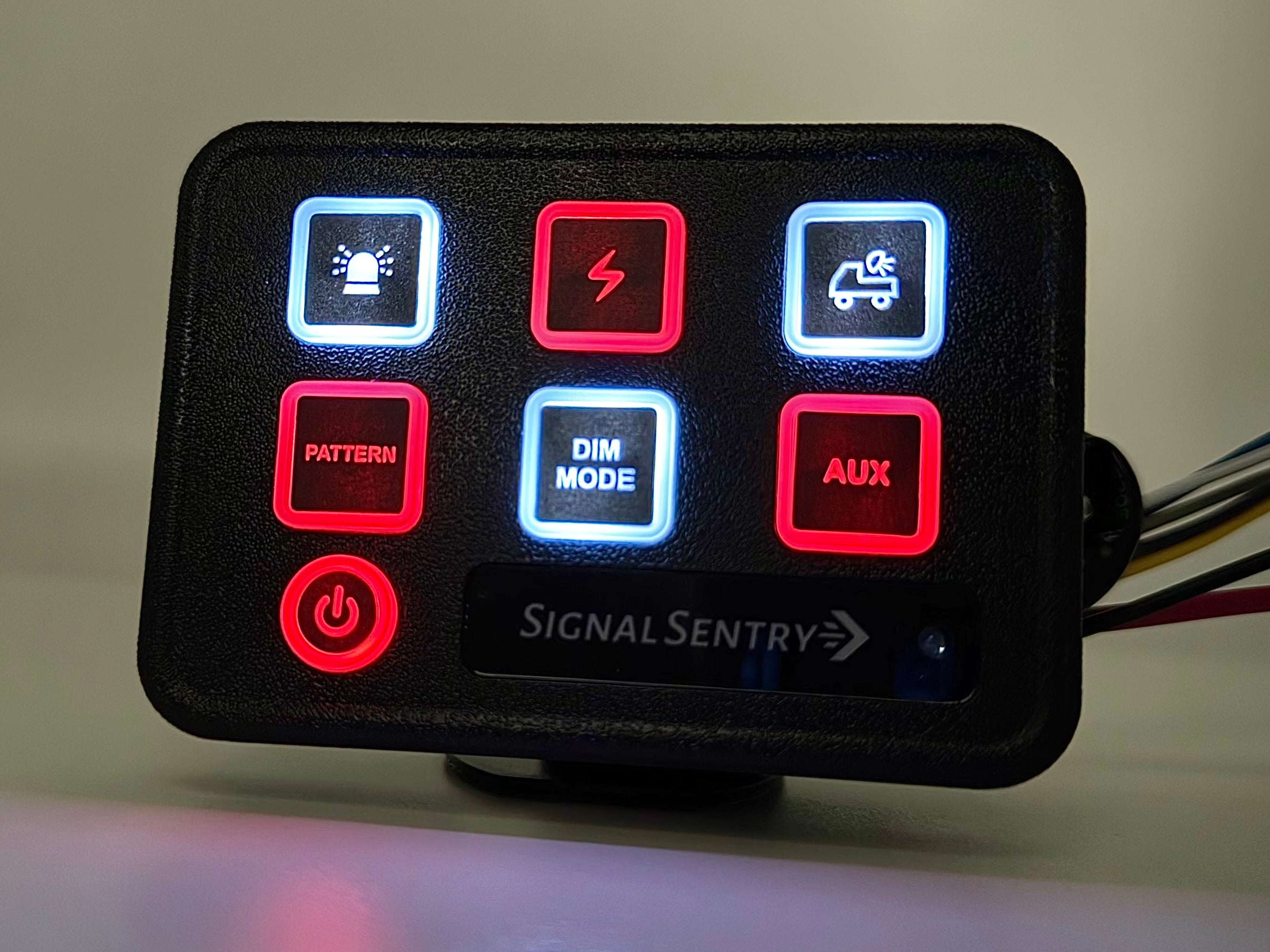

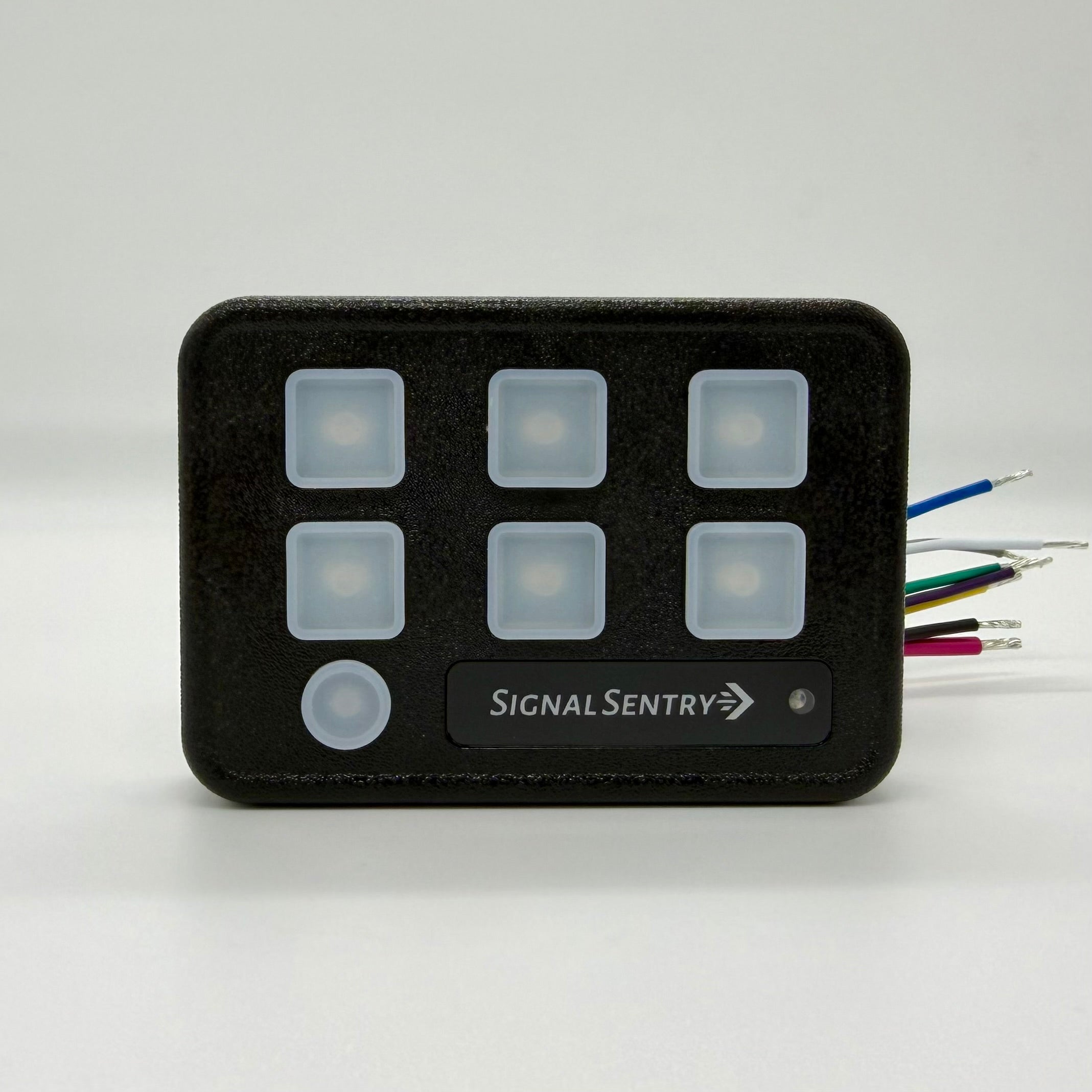

SPEAR6 All-in-One 6 Way Programmable Switch Controller
Product Information

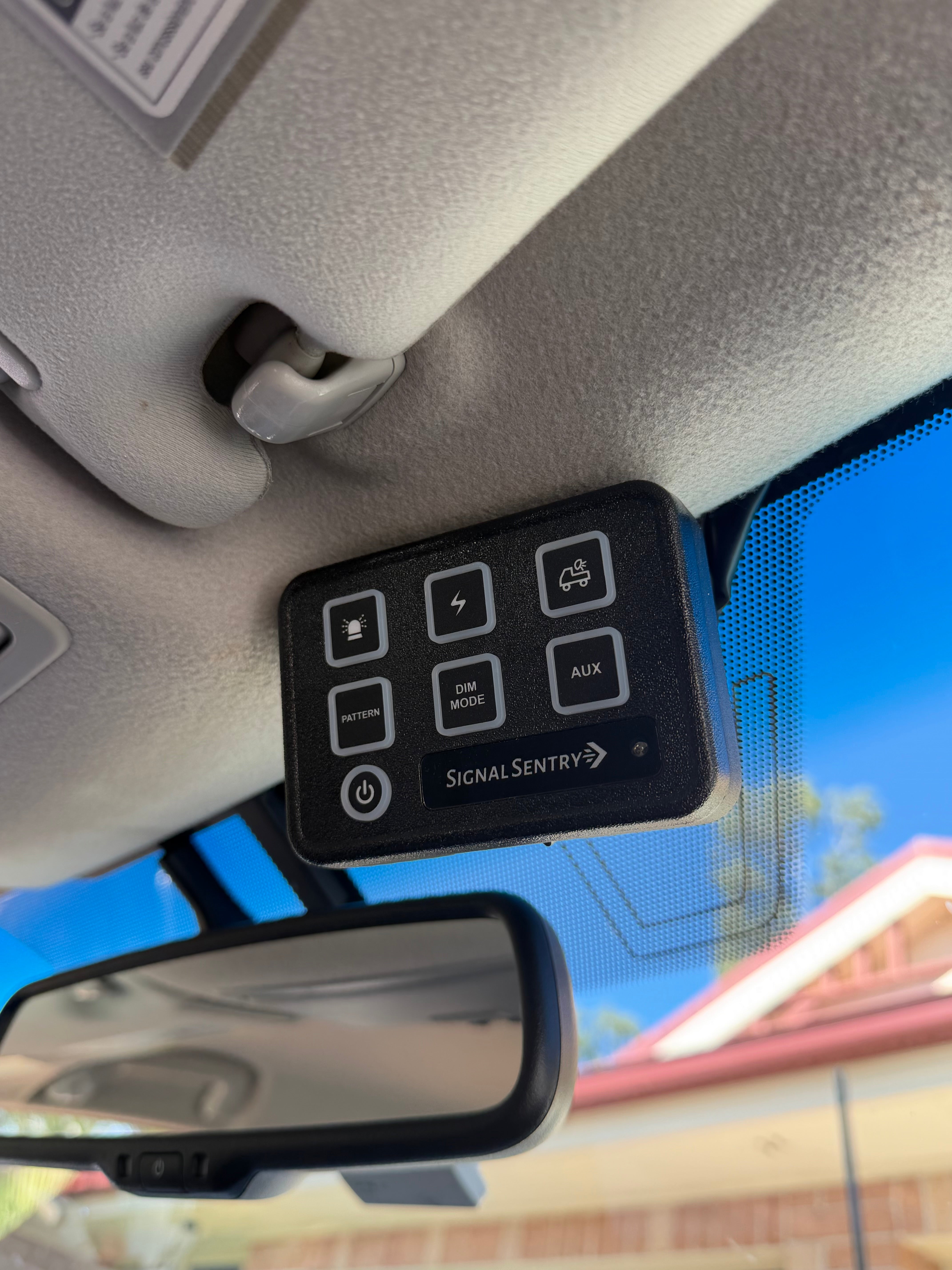

Clean up your cab and take control of your accessories. SPEAR6 is a smart 6-way programmable controller with dual-colour backlit switches and optional auto-dim, built for fast, tidy installs. It delivers a 40A combined output (2×10A + 4×5A), supports momentary or latching modes, and adds master-slave group control (2 groups) for streamlined setups. Sealed to IP67 and built on an aluminium base, it’s 10–30V compatible and engineered for harsh worksites.
| Specification | Details |
|---|---|
| Switches 1-6 |
Smart 6-Way Programmable Switch Panel Supports Latching or Momentary switch modes |
| Power |
Unit: ON/OFF Master Power Control Combined Output Capacity: 40A Max |
| Outputs / Protection |
2 Outputs: Max 10A each 4 Outputs: Max 5A each Total Combined: 40A Max |
| Master / Slave | Master-Slave Function with 2 Groups (Group Mode) |
| Backlighting | Dual-Color LED Backlight with Auto Dim Mode (Optional) |
| Build | Aluminium Base, Heavy Duty Construction, IP67 Waterproof |
| Ingress Protection | IP67: Provides total dust ingress protection (6) and immersion resistance (7), up to 1 meter of water for 30 minutes, ideal for durability in wet and dusty conditions. |

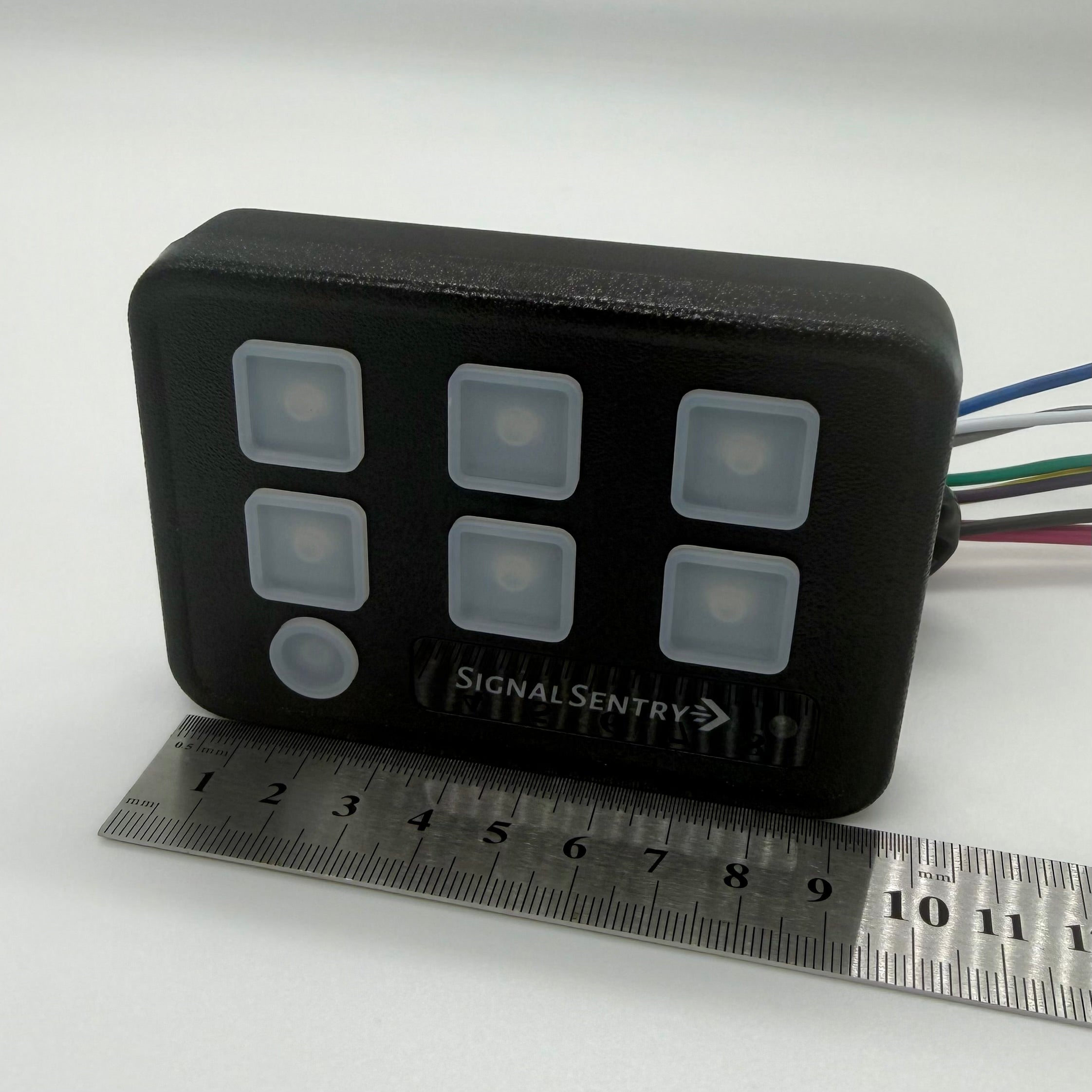

| Size | 100 × 70 × 20 mm |

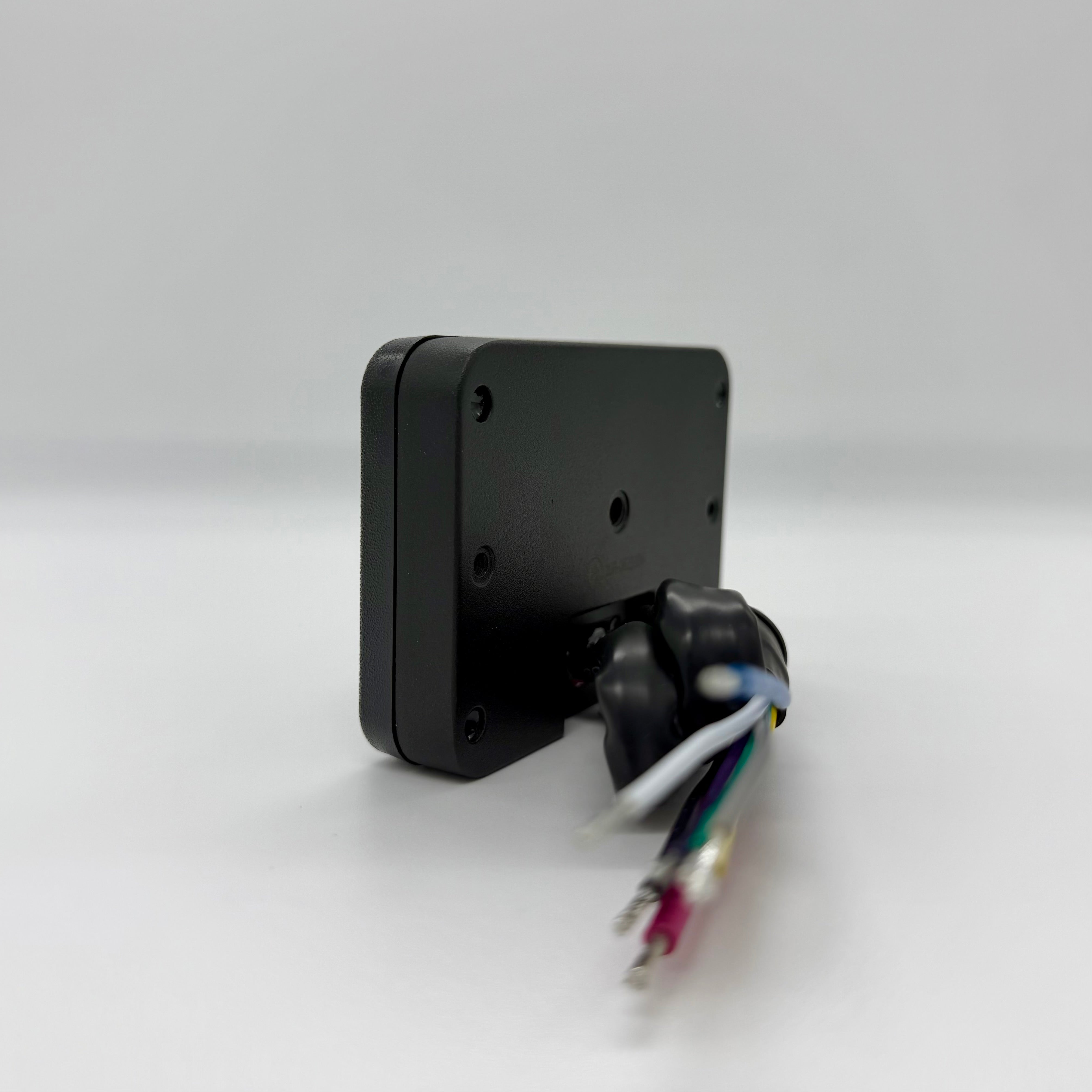

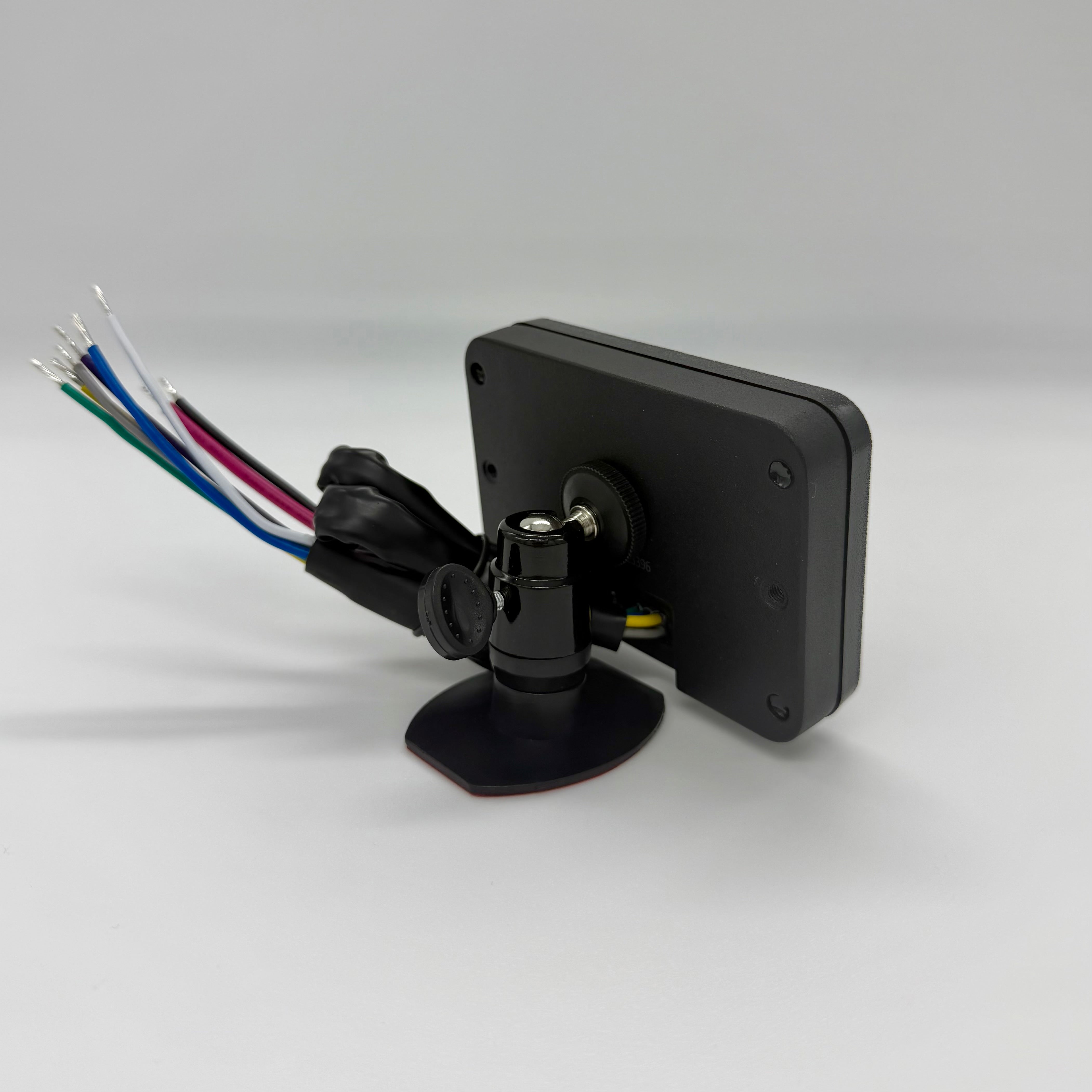

| Mounting | Dual mounting options: 3M VHB adhesive mount or bracket mount with 1/4" threaded insert. |
| Wire Length | 15cm Wire Length |
| Wire Type | 8 Core Wire |
| Voltage | DC 10V~30V |
| Wiring Information |
RED: Input 10–30VDC (Max 40A) • BLACK: Ground P1–P2: 10A Outputs • P3–P6: 5A Outputs |
| Instructions | Comprehensive information & instructions, including wiring diagrams and programming guides, are supplied on a leaflet with the item. |
DAYTIME RUNNING LIGHT & INDICATOR. DUAL FUNCTION.
Smart Programmable 6-in-1
Switch Control Panel
⇢ Momentary or Latching Switch Functions
40A Max Combined Output — power your setup with confidence: work lights, lightbars, beacons, scene lights, camp lights, UHF radio, phone chargers, and fridge sockets
AUSTRALIAN FIRST - COMPACT HEAVY DUTY BUILD.
ADVANCED AUXILLARY CONTROL MADE EASY
Innovative PERFORMANCE, ENGINEERED FOR AUSTRALIA.
A MODERN solution for AUXILLARY CONTROL
SPEAR6
